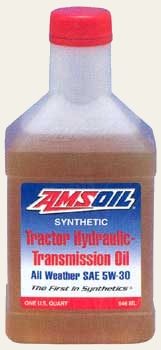

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil SAE 5W-30 (ATH)

Formulated for "All Weather" Performance in Farm and Commercial Equipment.

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is an all-weather Universal Tractor Transmission Oil (UTTO) engineered to meet the tough demands of heavy-duty, hydraulic-powered farm and commercial equipment. Its unique formulation of synthetic base stocks and additives effectively reduces wear, resists heat, protects against rust and extends fluid and equipment service life. Synthetic Tractor Hydraulic/Transmission Oil is recommended for extended oil drains based on oil analysis.

Excellent Protection in Temperature Extremes

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil operates over a wide range of temperatures. It has a high viscosity index to maintain its lubricity at high operating temperatures, and it flows at temperatures as low as -47°F (-44°C) for improved equipment operation and wear protection at low temperatures. Synthetic Tractor Hydraulic/Transmission Oil exceeds the most demanding all-weather specifications of both Ford New Holland FNHA-2-C-200 & 2-C-201 and John Deere J20C & J20D, eliminating the need for seasonal oil changes.

Smooth Brake Operation

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is formulated with durable friction modifier additives that effectively suppress wet brake chatter. Unlike conventional oils that can break down and cause vibration, AMSOIL Synthetic Tractor Hydraulic/Transmission Oil provides continuous frictional stability for long-term smooth brake operation.

Feature: Multi-Viscosity
Benefits: Excellent cold and hot weather protection, no seasonal change outs

Feature: Universal Applications
Benefits: Inventory consolidation, no misapplications

Feature: Stable Friction Modifier Additives
Benefits: Correct and decisive multi-disc/clutch operation, excellent control over brake chatter, smooth operation, extended oil and equipment life

Feature: Anti-Foam Additives
Benefits: Rapid air release, cooler operation, smooth brake operation, control over fade and spongy hydraulic response

Feature: Oxidation Inhibitors
Benefits: Excellent resistance to oil degradation at high temperatures, extended lubricant and equipment life

Feature: Seal and Hose Conditioners
Benefits: Compatible with all seal materials, seal and hose flexibility, positive seal seating, reduced oil leaking, extended seal and hose life, fewer blown hoses

Feature: Superior Anti-Wear Additives
Benefits: Scoring and gear wear protection under all load conditions, extended equipment life even under severe conditions, increased pump and valve life, may be used in final drives calling for a UTTO

Applications

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is Recommended for equipment combinations of transmissions, hydraulic systems, final drives, power take-off systems and wet brakes operating in "all weather" hot and cold temperatures, including, but not limited to, the following:

• Farm tractors and equipment
• Fork lift trucks
• Pavement rollers
• Off road equipment:
• Loaders
• Backhoes
• Bulldozers
• Tractors
• Logging equipment
• Ditchers
• Concrete formers
• Lawn tractor hydrostatic transmissions
• Golf course mower hydrostatic systems
• 4x4 ATV models with wet brake differentials

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is recommended for applications that require any of the listed specifications:

• AGCO/Duetz-Allis/Allis-Chalmers - Power Fluid 821 XL, 257541, 246634
• Allison - C-4, C-3, C-2
• Case Corp. J.I. Case & IH - MS-1207 (Hy-Tran^® Plus), MS-1210 (TCH Fluid JIC145), MS-1230 (Poclain Equip-high pressure systems), B-6, MS-1206 (PTF), MS-1205 (TFD-II), MS-1204 (TFD), JIC-185, JIC-144, JIC-143, B-5
• Belarus
• Caterpillar - TO-2
• Clark - TA 12, TA 18, HR 500, HR 600
• Dresser CED - Trans/Hyd Fluid
• Hesston Fiat - Oilofiat Tutela Multi-F, AF-87
• John Deere - J20C, J20D (Winter grade), J20A/B, J14B, JD 303, J21A
• Kubota - UDT
• Landini - Tractor II Hyd. Fluid
• Leyland
• Massey-Ferguson - M-1141 (Permatran^® III), M-1135, M1143, M1129-A, M-1127-A/B, M-1110
• New Idea Power Units
• New Holland Ford - M2C134-A/B/C/D, FNHA-2-C-201.00, FNHA-2-C-200.00 (Winter grade), M2C86-B, M2C53-A, M2C41-B, M2C48-C
• Oliver - Q-1802 Type 55
• Steiger - Hyd/Trans SEMS 17001
• Sundstrand - Hydrostatic Transmission Fluid
• Valmet
• Versatile - M2C134-D FNHA-2-C-201.00, Spec 24M, Spec 23M
• White Farm (Oliver) - Q-1826, Q-1802, Q-1766B, Q-1722, Q-1705
• Yanmar

Installation

AMSOIL Hydraulic/Transmission Oil is fully compatible with conventional tractor hydraulic/transmission oils. To install AMSOIL Hydraulic/Transmission Oil in a hydraulic system, drain the existing hydraulic/transmission oil, change filters and install AMSOIL Synthetic Tractor Hydraulic/Transmission Oil.

AMSOIL Synthetic Tractor Hydraulic/Transmission Oil is recommended for the replacement of, but not limited to, the following oils:

ARCO Tractor Fluid; BP Tractran UTH; Case Hytran; Chevron Torque Fluid; Chevron Tractor Hydraulic Fluid; Conoco Power-Tran III Fluid; Conoco Farm Master; Gulf Universal Tractor Fluid; John Deere Hy-Gard; Kendall HYKEN 052; Kubota UDT; Lubrication Engineers 7500; Lubriplate UTF C-4; New Holland, Ford M2C134-D & FNHA-2-C-200.00 & 201; Mobilfluid 300, 350 and 424; Pennzoil HYDRA-TRANS; Phillips HG Fluid; Royal Purple SYN-TRACTOR III WG; Shell Donax TD

Health & Safety

This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). An MSDS is available upon request at 715-392-7101 or on our website. Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

TYPICAL TECHNICAL PROPERTIES
AMSOIL Synthetic Tractor Hydraulic/Transmission Oil SAE 5W-30 (ATH)
SAE Viscosity	5W-30
Kinematic Viscosity @ 100°C, cSt (ASTM D-445)	10.0
Kinematic Viscosity @ 40°C, cSt (ASTM D-445)	58.2
Viscosity Index (ASTM D-2270)	160
Flash Point °C (°F) (ASTM D 92) 150°C Min.	242 (468)
Pour Point °C (°F) (ASTM D 97)	-44 (-47)
Four Ball Wear Test (ASTM D4172B @ 40 kgf, 75 °C, 1200 rpm, 1 hr), Scar, mm	0.35
Cold Crank Simulator -30°C (ASTM D-5293)	5,438
Brookfield Viscosity (ASTM D-2683) @ -40°C	17,964
